CHK-01: Three Pillars Architecture

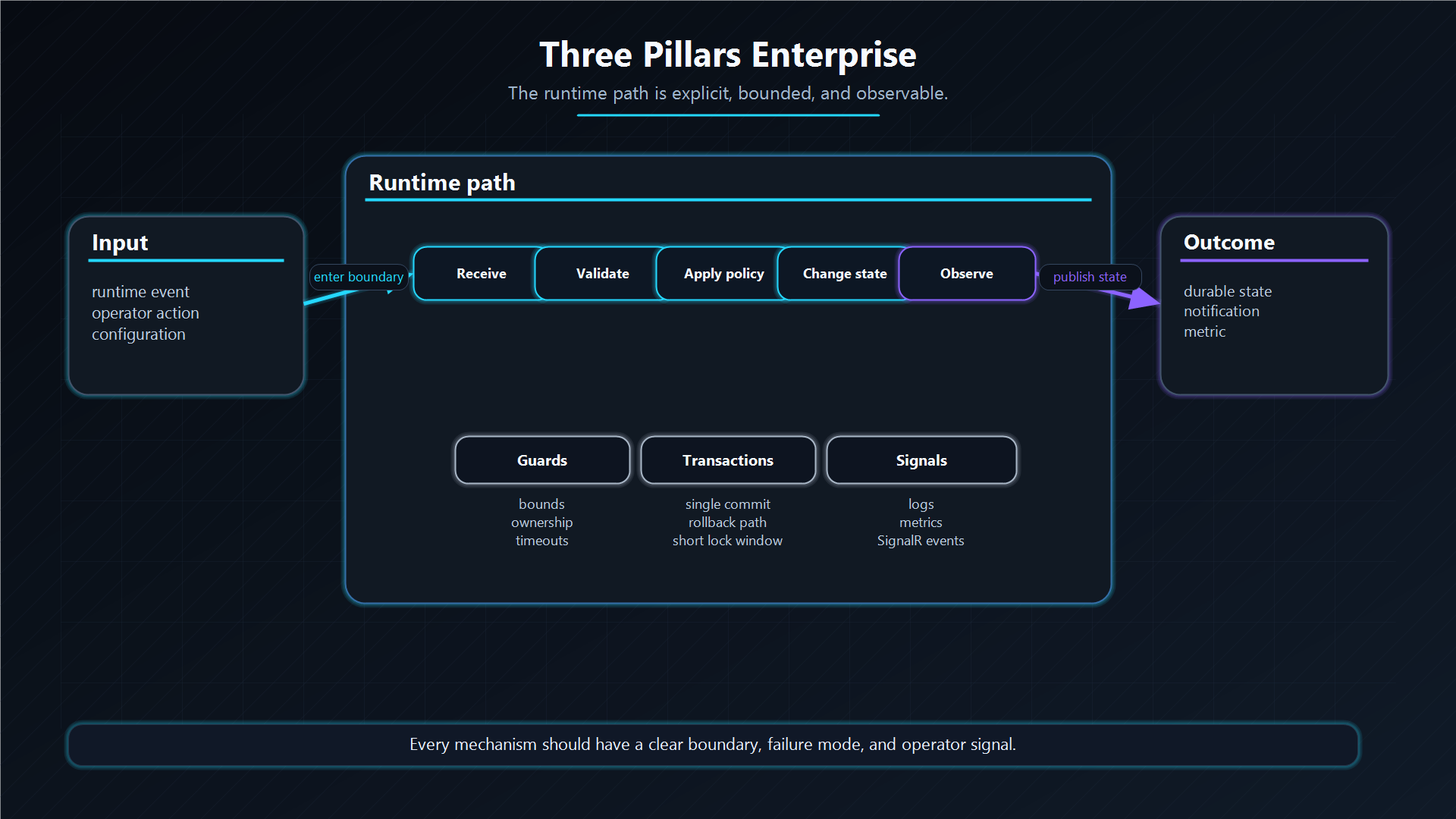

Three Pillars enterprise map

The Core Problem

A background job store can model the full lifecycle in one table: pending, processing, succeeded, failed, cancelled, and delayed rows all share the same physical structure. That is a reasonable starting point because the schema is simple, but it creates pressure once active work and long-lived history grow at different rates:

| Id | Status    | Payload | CreatedAt | ... |
|----|-----------|---------|-----------|-----|
| 1  | Succeeded | ...     | Jan 1     |     |  ← Completed 6 months ago
| 2  | Succeeded | ...     | Jan 2     |     |  ← Completed 6 months ago
| .. | ...       | ...     | ...       |     |  ← 2 million more rows
| N  | Pending   | ...     | Today     |     |  ← Active work the worker needs now

The fetch path is interested in eligible active rows. Historical rows have a different job: audit, investigation, retention, and reporting. When both shapes live together, the active fetch path must keep filtering around data it does not need. Over time:

Index fragmentation increases (constant INSERT/DELETE in the same B-tree)
Page splits slow down writes
COUNT(*) for dashboard stats becomes expensive

The Solution: Physical Data Separation

ChokaQ splits data into three physically separate tables, each optimized for its specific workload:

Three Pillars architecture

Pillar 1: JobsHot

The high-concurrency workhorse. Only contains jobs that are actively in play.

Column	Purpose
`Status`	`0:Pending`, `1:Fetched`, `2:Processing` — only three states
`Priority`	Descending sort — higher number = processed first
`HeartbeatUtc`	Updated every N seconds during processing — zombie detection
`ScheduledAtUtc`	For delayed/retry scheduling — `NULL` means "run now"
`IdempotencyKey`	Unique filtered index — prevents duplicate enqueuing

Key Optimization: The fetch index is filtered — it only contains Pending jobs:

sql

CREATE NONCLUSTERED INDEX [IX_JobsHot_Fetch]
ON [chokaq].[JobsHot] ([Queue], [Priority] DESC, [ScheduledAtUtc], [CreatedAtUtc])
INCLUDE ([Id], [Type])
WHERE [Status] = 0                    -- 👈 Only Pending jobs in the index
WITH (DATA_COMPRESSION = PAGE, FILLFACTOR = 80);

This keeps the fetch index focused on eligible work. Even if thousands of jobs are processing or retained elsewhere, the fetch index only tracks pending rows. CreatedAtUtc is part of the key because delayed jobs and immediate jobs share the same fetch path; the engine orders by effective schedule time and uses creation time as the stable tie-breaker.

Pillar 2: JobsArchive

Write-once, read-many. Once a job succeeds, it's atomically moved here.

Column	Purpose
`DurationMs`	Execution time for performance analytics
`FinishedAtUtc`	Completion timestamp for trend charts
`AttemptCount`	How many tries it took

Key Optimization: PAGE compression (since data is rarely updated):

sql

CONSTRAINT [PK_JobsArchive] PRIMARY KEY CLUSTERED ([Id] ASC)
WITH (DATA_COMPRESSION = PAGE)

SQL Server PAGE compression can achieve 50-70% storage reduction on text-heavy rows.

Pillar 3: JobsDLQ

Jobs that reached a terminal failure state and need inspection, repair, or explicit cleanup. Each row keeps the failure reason and diagnostic details:

csharp

public enum FailureReason
{
    MaxRetriesExceeded = 0,  // Exhausted all retry attempts
    Cancelled = 1,           // Admin cancelled via The Deck
    Zombie = 2,              // Heartbeat expired — worker crashed
    CircuitBreakerOpen = 3,  // Too many failures for this job type
    Rejected = 4,            // Validation failure on enqueue
    Throttled = 5,           // Downstream rate limit or overload signal
    FatalError = 6,          // Poison-pill failure that should not retry
    Timeout = 7,             // Handler exceeded its execution timeout
    Transient = 8            // Retryable failure family after exhaustion
}

DLQ supports:

Filtering by reason — "show me all zombies from last week"
Payload editing — fix broken JSON directly in The Deck
Resurrection — move back to Hot table with reset AttemptCount

Pillar 4: StatsSummary

Pre-aggregated counters for O(1) dashboard reads:

sql

CREATE TABLE [chokaq].[StatsSummary](
    [Queue]           VARCHAR(255) NOT NULL,
    [SucceededTotal]  BIGINT NOT NULL DEFAULT 0,
    [FailedTotal]     BIGINT NOT NULL DEFAULT 0,
    [RetriedTotal]    BIGINT NOT NULL DEFAULT 0,
    [LastActivityUtc] DATETIME2(7) NULL
);

Instead of counting retained history on each dashboard refresh, The Deck reads a single pre-computed row.

Pillar 5: MetricBuckets (The Rolling Speedometer)

StatsSummary answers lifetime counters. MetricBuckets answers recent-rate questions:

jobs processed per second over rolling dashboard windows;
failed vs processed percentage;
duration aggregates for future charts;
outcome history that does not disappear when a DLQ row is requeued or purged.

This is a deliberate evolution from the earlier bounded-lookback design. Reading recent Archive/DLQ rows was simple and useful, but it coupled dashboard rate queries to lifecycle history and made operator cleanup rewrite recent failure windows. MetricBuckets records the completion outcome inside the same transaction as Hot -> Archive or Hot -> DLQ, then The Deck reads a tiny recent bucket range.

See Rolling Observability Buckets for the full trade-off discussion.

Atomic Transitions: The Safety Net

Every movement between pillars is atomic — a single SQL batch that either fully succeeds or fully fails.

Success Path: Hot → Archive

sql

-- Delete from Hot and capture the row via OUTPUT
DELETE FROM [chokaq].[JobsHot]
OUTPUT
    DELETED.[Id], DELETED.[Queue], DELETED.[Type], DELETED.[Payload],
    DELETED.[Tags], DELETED.[AttemptCount], DELETED.[WorkerId],
    DELETED.[CreatedBy], NULL,
    DELETED.[CreatedAtUtc], DELETED.[StartedAtUtc],
    SYSUTCDATETIME(), @DurationMs
INTO [chokaq].[JobsArchive](...)
WHERE [Id] = @JobId;

-- Atomically increment the success counter
MERGE [chokaq].[StatsSummary] AS target
USING (SELECT @Queue AS Queue) AS source
ON target.[Queue] = source.[Queue]
WHEN MATCHED THEN
    UPDATE SET SucceededTotal = SucceededTotal + 1,
               LastActivityUtc = SYSUTCDATETIME()
WHEN NOT MATCHED THEN
    INSERT (Queue, SucceededTotal, ...) VALUES (@Queue, 1, ...);

🔑 Critical Design Decision

The important pattern is not "copy in application code, then delete later." ChokaQ performs the move inside one SQL transaction and uses OUTPUT to capture the exact row being moved. That keeps the state transition atomic and gives worker-ownership guards a single place to decide whether the move is still valid.

Failure Path: Hot → DLQ

Same pattern, but with FailureReason and ErrorDetails:

sql

DELETE FROM [chokaq].[JobsHot]
OUTPUT
    DELETED.[Id], DELETED.[Queue], DELETED.[Type], DELETED.[Payload],
    DELETED.[Tags], @FailureReason, @ErrorDetails, DELETED.[AttemptCount],
    DELETED.[WorkerId], DELETED.[CreatedBy], NULL,
    DELETED.[CreatedAtUtc], SYSUTCDATETIME()
INTO [chokaq].[JobsDLQ](...)
WHERE [Id] = @JobId;

Resurrection Path: DLQ → Hot

The reverse — gives the job a second chance with reset state:

sql

DELETE FROM [chokaq].[JobsDLQ]
OUTPUT
    DELETED.[Id], DELETED.[Queue], DELETED.[Type],
    CASE WHEN @NewPayload IS NOT NULL THEN @NewPayload ELSE DELETED.[Payload] END,
    CASE WHEN @NewTags IS NOT NULL THEN @NewTags ELSE DELETED.[Tags] END,
    NULL,   -- IdempotencyKey reset
    ISNULL(@NewPriority, 10),
    0,      -- Status = Pending
    0,      -- AttemptCount reset to 0
    ...
INTO [chokaq].[JobsHot](...)
WHERE [Id] = @JobId;

💡 Architecture Insight

Updating only a status column keeps the schema smaller, but the fetch query must always filter around completed rows. With physical separation, the fetch index only contains active jobs, which keeps the hot path focused and predictable.

Performance Impact

Metric	Single-Table Design	Three Pillars
Fetch query scan	All rows (millions)	Only Pending rows
Index fragmentation	High (mixed INSERT/DELETE)	Low (append-mostly per table)
Archive query speed	Competes with active queries	Dedicated index, PAGE compressed
Dashboard stats	`COUNT(*)` full scan	O(1) read from StatsSummary
Storage efficiency	One storage policy for mixed lifecycle rows	PAGE compression on cold data

Next: Learn Why SQL Server? — the database-level features that make this architecture possible.

Architecture Decision

Why this pattern?

Active work, successful history, and failed recovery work have different query patterns. Physical separation keeps worker fetch small while preserving audit and repair data.

Trade-offs

The model requires atomic cross-table moves. ChokaQ accepts that complexity and uses short SQL transactions so rows are not half-moved.

Alternatives considered

Alternative	Benefit	Cost
One jobs table	Simple schema.	Active fetch competes with years of history.
Broker plus separate history store	High broker throughput.	Split operational state.
No DLQ	Smaller model.	Failed work has no repair workflow.

Additional Questions

Why not a single jobs table?
Because active fetch should not degrade as history grows.

What makes the split safe?
Atomic state transitions with SQL transactions and ownership predicates.

What is the main cost?
More schema and transition logic, which must be tested and documented.
