Real-time SignalR Dashboard

The Deck: Mission Control

The Deck is ChokaQ's built-in admin dashboard — a Blazor Server application that provides real-time monitoring and operational control. No separate deployment, no external tools — it runs inside your ASP.NET Core process.

Setup

// Program.cs
builder.Services.AddAuthentication(/* your scheme */);
builder.Services.AddAuthorization();
builder.Services.AddChokaQTheDeck();

var app = builder.Build();
app.MapChokaQTheDeck();  // Dashboard available at /chokaq

By default, The Deck requires the host application's default authorization policy. For a local-only demo or an intentionally public sandbox, opt in explicitly:

builder.Services.AddChokaQTheDeck(options =>
{
    options.AllowAnonymousDeck = true;
});

Architecture: Blazor Server + SignalR

Why Blazor Server?

• UI logic runs on the server — no API layer needed
• Direct access to IJobStorage via DI
• SignalR connection is already established by Blazor — zero extra config
• Real-time updates are SignalR-driven, with bounded storage reconciliation as the correctness fallback

Dashboard Panels

Stats Bar

Aggregated counters from StatsSummary + live JobsHot counts:

Metric	Source	Update
Pending	COUNT(*) FROM JobsHot WHERE Status=0	On every job state change
Buffered	COUNT(*) FROM JobsHot WHERE Status=1	On fetch
Processing	COUNT(*) FROM JobsHot WHERE Status=2	On process start/end
Succeeded	StatsSummary.SucceededTotal	On archive (O(1) read)
Failed	StatsSummary.FailedTotal	On DLQ move (O(1) read)
Throughput	MetricBuckets via GetSystemHealthAsync()	Dashboard refresh
Failure Rate	MetricBuckets via GetSystemHealthAsync()	Dashboard refresh

Operational Health Snapshot

The Deck reads IJobStorage.GetSystemHealthAsync() for production-oriented signals that lifetime counters cannot answer:

• Queue lag: average and maximum wait time for eligible Pending jobs per queue.
• Throughput: jobs processed per second over the last 1 minute and 5 minutes.
• Failure rate: failed vs processed percentage over the same windows.
• Top errors: the top 5 recent DLQ error families grouped by FailureReason and normalized error prefix.

The SQL Server implementation keeps these reads bounded and index-friendly. Queue lag is calculated from Pending hot rows through a dedicated filtered index, throughput/failure rate come from rolling MetricBuckets, and top-error grouping is limited to a recent DLQ sample so the dashboard does not become an accidental full-history analytics workload during an incident.

See Rolling Observability Buckets for the architecture lesson behind the upgrade from direct Archive/DLQ lookbacks to materialized outcome buckets.

Consistency Model

The Deck treats IJobStorage as the canonical source of truth after every operator mutation. It does not decrement counters locally after retry, purge, cancel, or edit commands, because those commands can be affected by filters, ownership guards, concurrent workers, and row-level outcomes. Instead, the page waits for the command path to settle and then reloads summary counters, health, circuit state, and the current table slice from storage.

SignalR is the primary live-update path for job and stats changes. The dashboard still keeps a reconciliation path because notification delivery is intentionally not part of the storage transaction. Timer-driven fallback refreshes and mutation-triggered reloads are single-flight, so a slow storage read cannot overlap with the next reconciliation request.

This deliberately trades a tiny refresh delay for correctness. The operator sees the state the database accepted, not the state the browser guessed. It also keeps bulk operations understandable: if a filtered purge removes the last item on a history page, The Deck clamps the view to the new last page instead of showing an empty page while the global counters still report matching rows.

Lag colors are configurable:

builder.Services.AddChokaQTheDeck(options =>
{
    options.QueueLagWarningThresholdSeconds = 5;
    options.QueueLagCriticalThresholdSeconds = 10;
});

Job Matrix

Virtualized grid showing active jobs with color-coded status badges:

Badge	Color	Meaning
PENDING	Gray/Muted	Waiting in queue
FETCHED	Blue	In worker memory buffer
PROCESSING	Yellow/Warning	Actively executing
SUCCEEDED	Green	Completed (in Archive view)
FAILED	Red	Failed (in DLQ view)

DLQ rows also show a failure-taxonomy badge. The badge is stored as structured data, not inferred from exception text:

Reason	Typical Meaning
FatalError	Poison pill or non-retryable handler/payload error
Throttled	Downstream rate limit or quota pressure
Timeout	Execution exceeded runtime budget
Transient	Retryable failure exhausted retry budget
RetryLifetimeExpired	Retry wall-clock lifetime budget expired
Cancelled	Explicit operator cancellation
Zombie	Worker heartbeat expired

This split matters operationally: throttling points to concurrency/quotas, timeouts point to execution budgets or downstream latency, and fatal errors point to payload or code fixes.

Queue Management Panel

Runtime controls for every queue:

• Pause/Resume — stop fetching from a queue without affecting in-flight jobs
• Activate/Deactivate — completely disable a queue
• MaxWorkers — adjust Bulkhead concurrency limit
• Zombie Timeout — per-queue heartbeat threshold

Circuit Breaker Monitor

Visual indicators for each job type's circuit status:

Indicator	State	Action
🟢	Closed	All clear — executions permitted
🟡	Half-Open	Testing — one execution allowed
🔴	Open	Blocked — countdown to reset shown

Console Stream

Real-time log of system events:

14:32:05  ✅ Job job-abc123 completed (245ms) [email_v1]
14:32:07  ❌ Job job-def456 failed: NullReferenceException [report_v2]
14:32:07  ⚡ Smart Worker: Fatal error — sent to DLQ immediately
14:33:00  ⚠️ ZombieRescue: Recovered 1 abandoned, archived 0 zombies
14:33:15  🔴 Circuit OPEN for job type "payment_v1" (5 consecutive failures)

Two Visual Themes

Blueprint (Default)

Engineering blueprint aesthetic — dark navy background with white grid lines:

• Background: #003366 with CSS grid overlay
• Font: Consolas monospace
• Borders: white with opacity
• Glass effect with backdrop-filter: blur(13px)

Carbon

High-contrast dark mode inspired by IBM Carbon Design System:

• Background: #222 with carbon fiber pattern
• Font: Inter sans-serif
• Borders: solid gray
• No glass effects — solid panels

Switch between themes at runtime via the theme selector in the header.

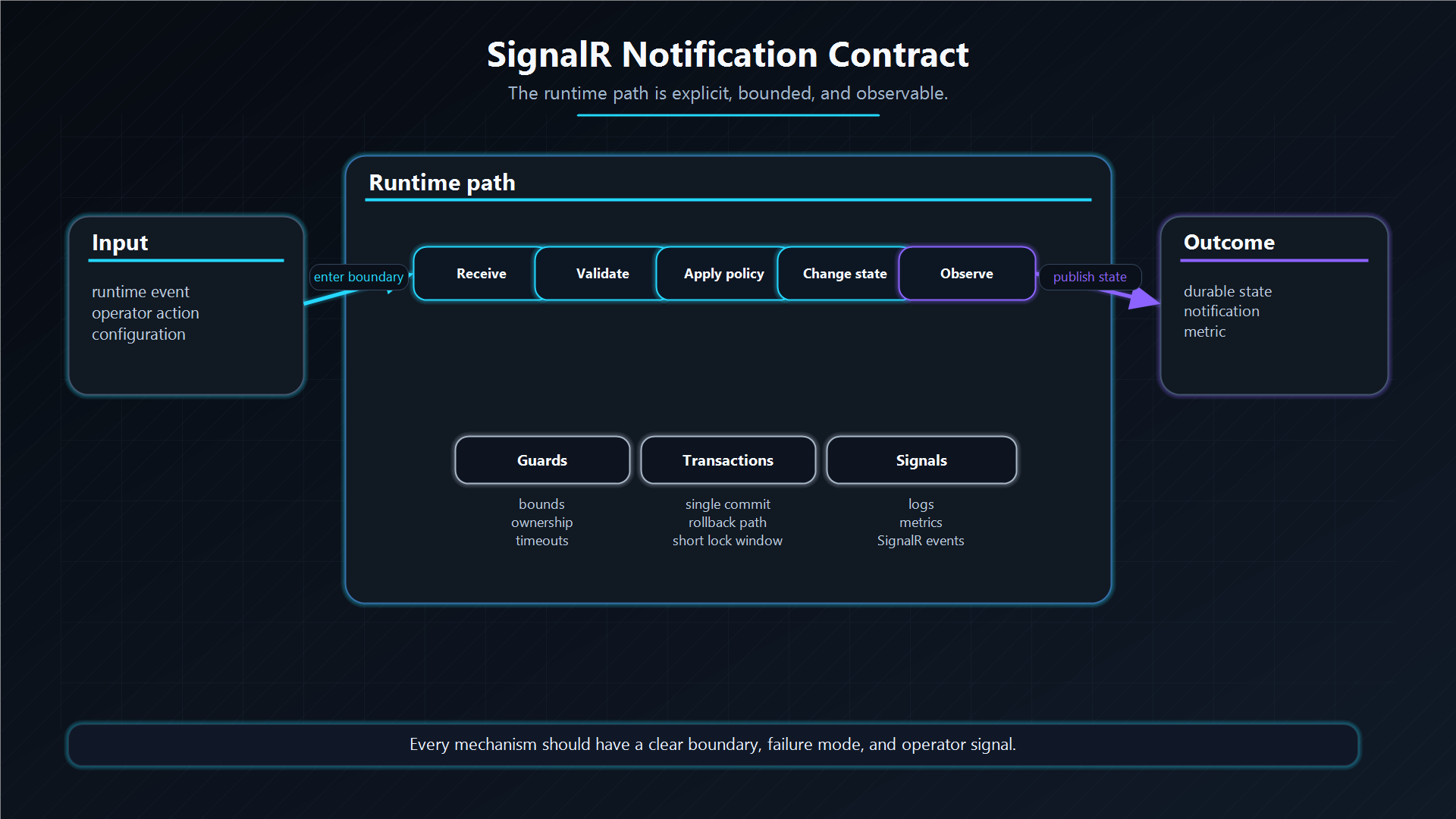

SignalR Notification Flow

When a job changes state, the pipeline is:

JobProcessor completes job
    → IJobStorage.ArchiveSucceededAsync()    // Persist
    → IChokaQMetrics.RecordSuccess()         // Metrics
    → IChokaQNotifier.NotifyCompletedAsync() // Push to dashboard
        → SignalR Hub broadcasts to all connected clients
            → Blazor components re-render with new data

The IChokaQNotifier is the bridge between the processing engine and the UI. In SQL Server mode, it uses SignalR. In In-Memory mode, it's a NullNotifier (no-op).

Security

The Deck is an administrative control plane: it can cancel, purge, edit, pause, deactivate, and resurrect jobs. For production, bind it to a dedicated ASP.NET Core authorization policy:

builder.Services.AddChokaQTheDeck(options =>
{
    options.AuthorizationPolicy = "ChokaQAdmin";
    options.DestructiveAuthorizationPolicy = "ChokaQWrite";
});

// Define the policy
builder.Services.AddAuthorization(options =>
{
    options.AddPolicy("ChokaQAdmin", policy =>
        policy.RequireRole("Admin"));
    options.AddPolicy("ChokaQWrite", policy =>
        policy.RequireRole("JobOperator"));
});

If no named policy is configured, The Deck still calls RequireAuthorization() and uses the application's default policy. Public access requires AllowAnonymousDeck = true, which keeps demos convenient without making production exposure the default.

AuthorizationPolicy controls read/connect access to the dashboard and SignalR Hub. DestructiveAuthorizationPolicy is checked inside Hub methods before cancel, retry, resurrect, edit, purge, pause, deactivate, or queue-limit changes. Leaving it null means destructive commands use the same boundary as the dashboard.

Next: See how to Edit + Resurrect dead jobs directly from the browser.
